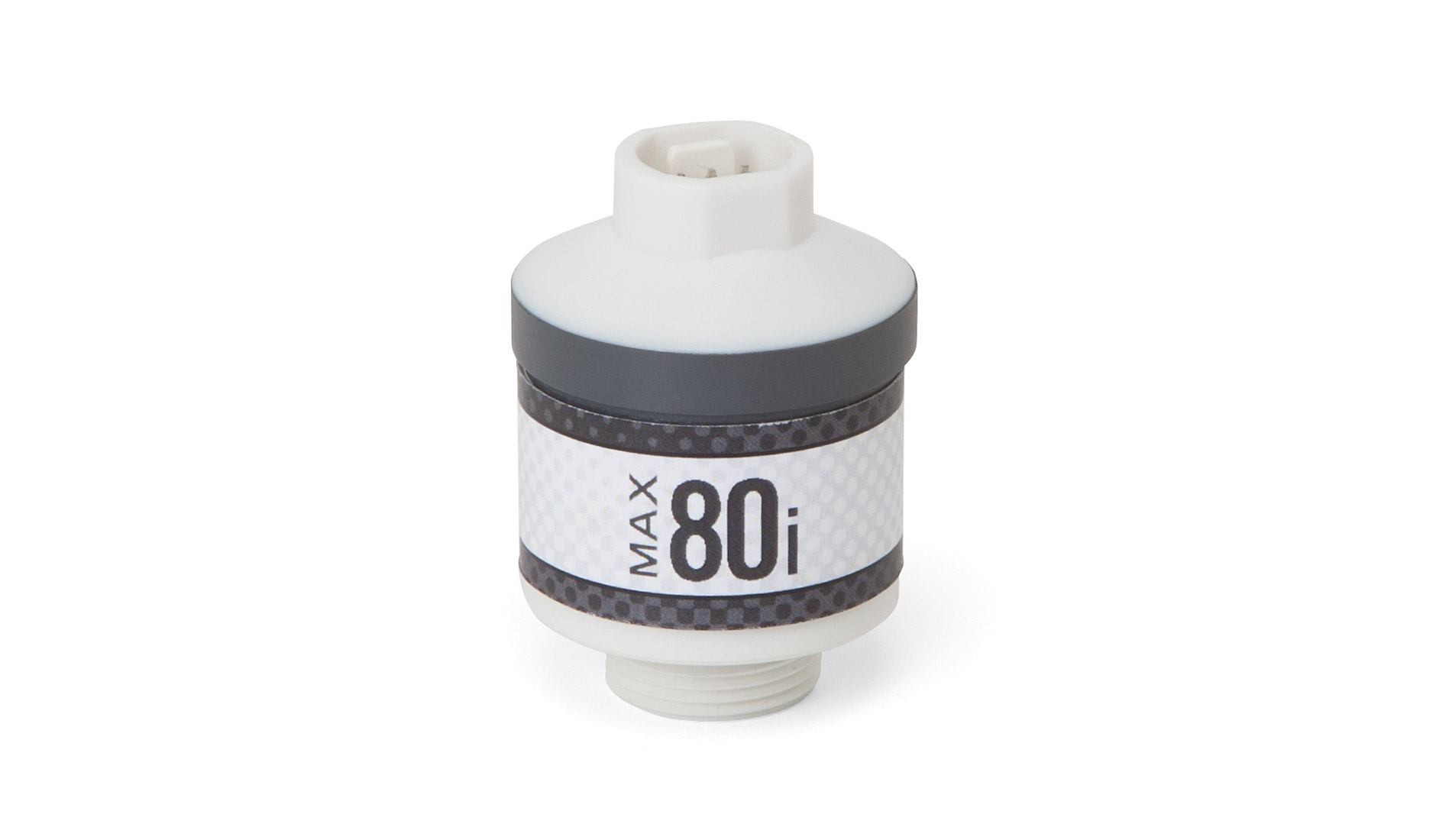

Max-80i Oxygen Sensor

Replacement For

• Custom [Custom applications with 3-pin molex connector]
• Custom [Applications containing high levels of CO2 or other acidic gases]
• Custom [Applications needing a short response time]

Specifications

• Range of Measurement: 0 to 100 Vol %
• Output Range: 5 to 15 mV
• Response Time: < 5 s
• Expected Lifetime: > 1,200,000 %O2 hours
• Operational Temperature Range: 0˚ to 45˚C
• Storage Temperature Range: -15˚ to 60˚C
• Humidity Range: -0.03% RH
• Ambient Pressure Range: 750-1250 hPa
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 3-pin Molex
