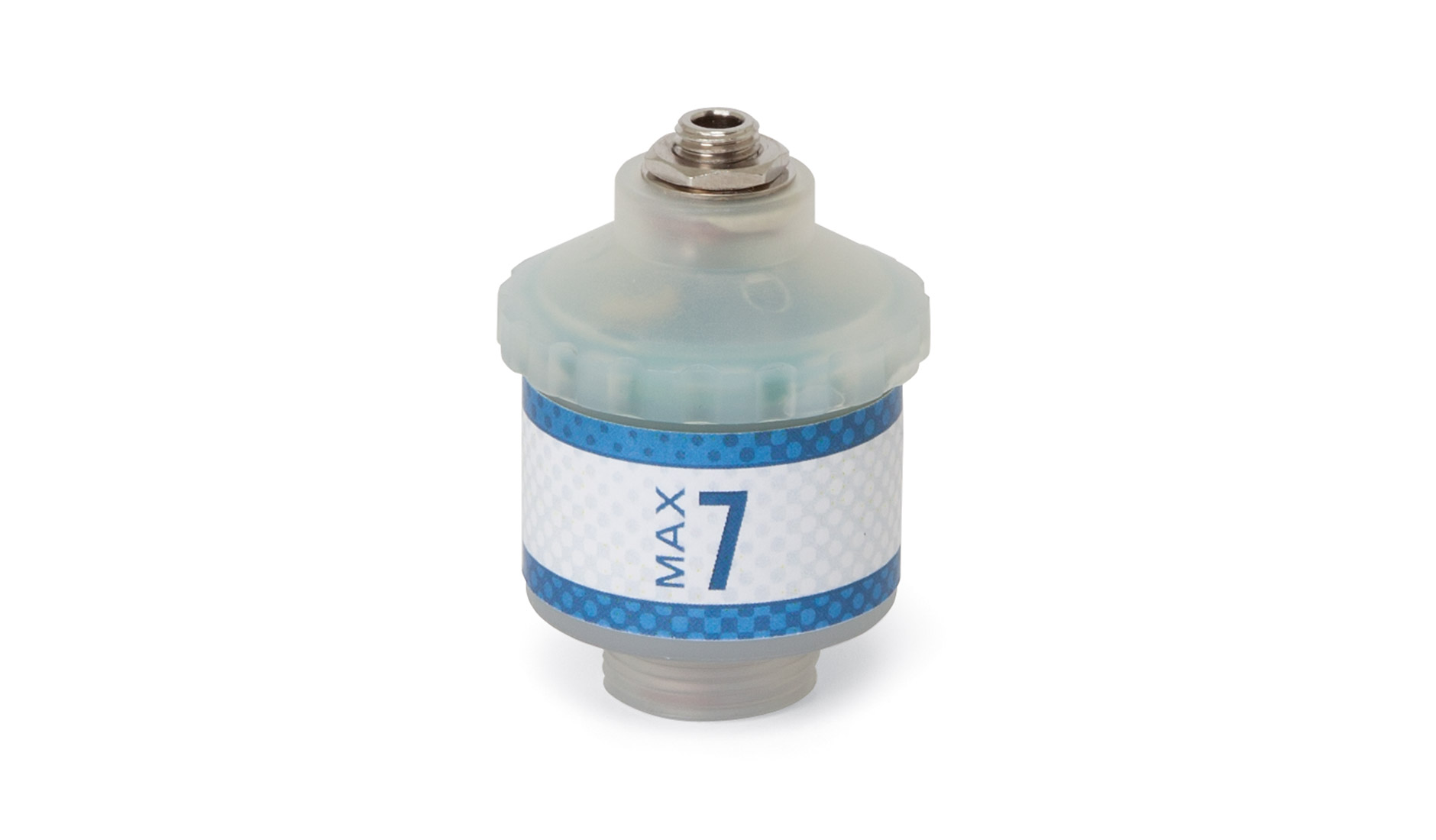

Max-7 Oxygen Sensor

Replacement For

• EnviteC [OOM-102-1]
• Precision Medical [505327]
• Teledyne [R17MED #C-43690, AX/MX300 Series, R17MED #C-43690]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 8.0 to 12.0 mV
• Zero Offset: ≤ .2 mV
• Response Time: ≤ 12 s
• Linearity: ± 2.0%
• Expected Lifetime: < 6 years
• Temperature Compensation: NTC
• Operational Temperature Range: 0°C to 45°C
• Storage Temperature Range: -20°C to 50°C
• Humidity Range: 5% to 95% RH, non-condensing
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack
