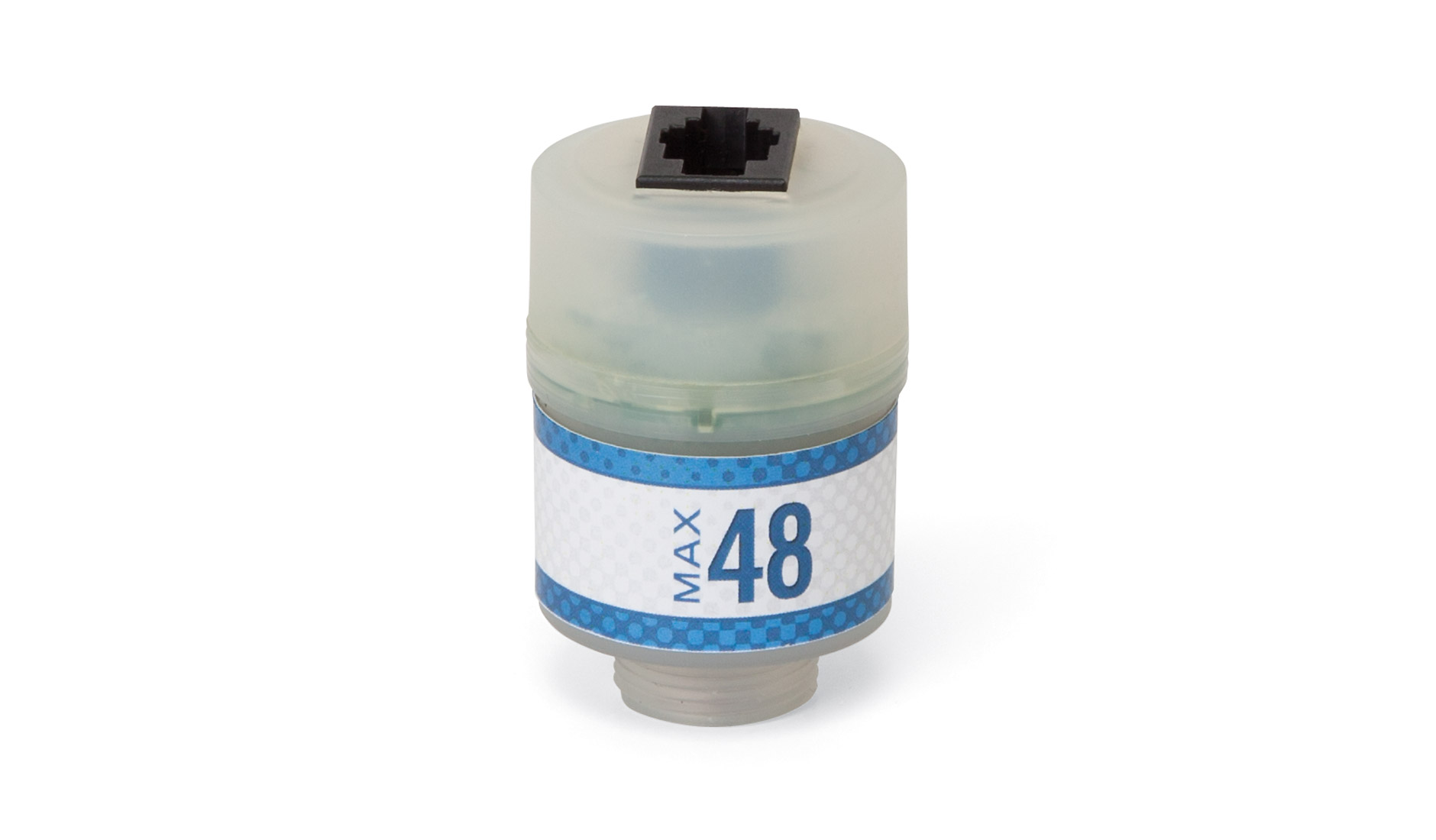

Max-48 Oxygen Sensor

Replacement For

• Analytical Industries [All-11-60, All2001 Analyzer, All2002 Analyzer]

Specifications

• Range of Measurement: 0-100% vol.% O2
• Output Range: 3.8 to 4.8 mV
• Zero Offset: < 50 µA
• Response Time: ≤ 12 s
• Linearity: ≤ 2.0%
• Expected Lifetime: 500,000 vol. %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 0˚ to 45˚C
• Storage Temperature Range: -0˚ to 50˚C
• Humidity Range: up to 100% RH
• Ambient Pressure Range: 750-1250 hPa
• Interference: according DIN EN 12598 and DIN EN ISO 21647
• Electrical Interface: AMP phone jack 4P4C
