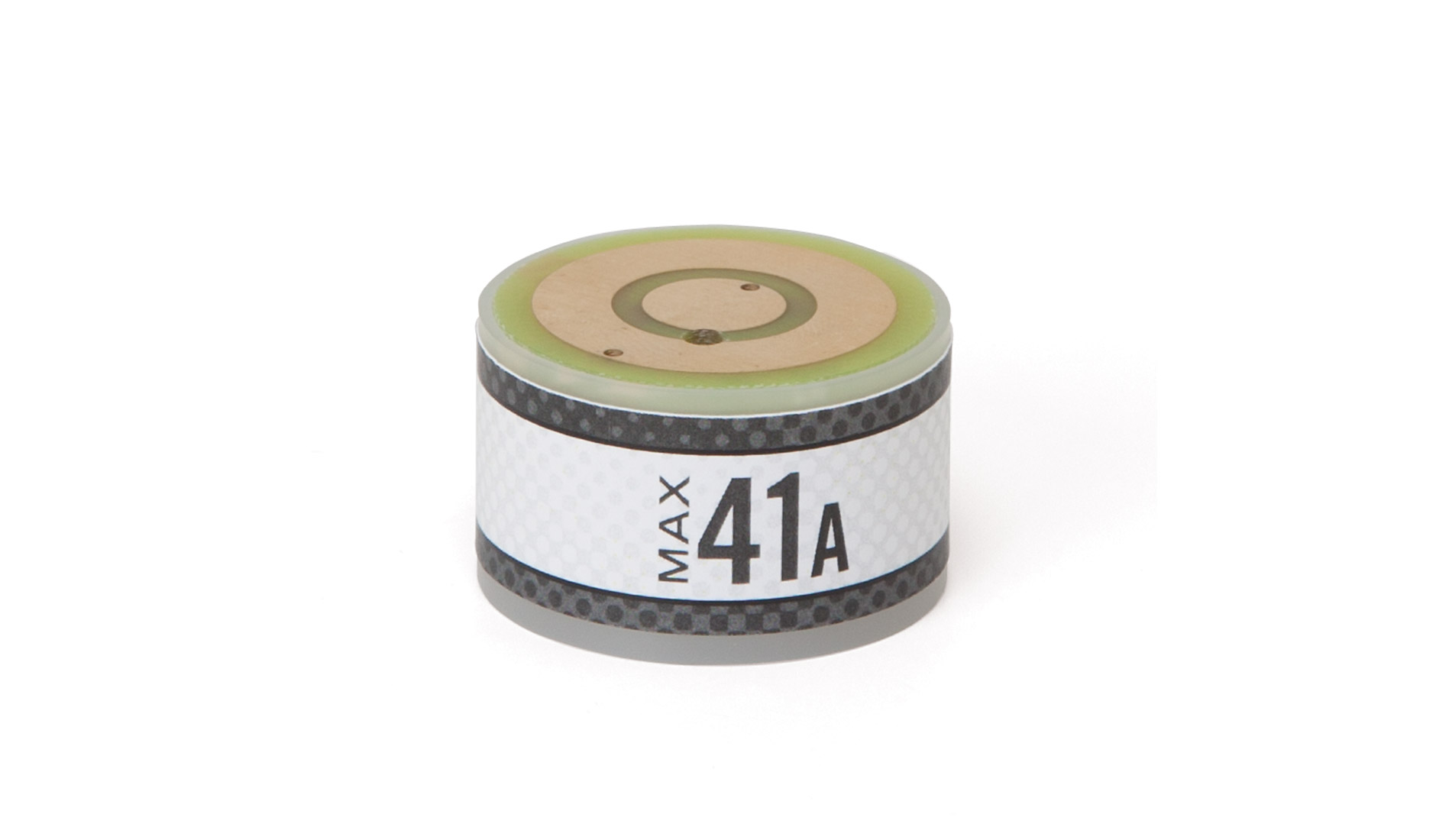

Max-41a Ppm Oxygen Sensor

Replacement For

• Custom [Contact Maxtec for Applications]

Specifications

• Range of Measurement: 1 to 10,000 ppm O2
• Output Range: 400 ± 120 µA
• Response Time: < 20 s from 10,000 down to 1,000 ppm
• Linearity: ± 2%
• Expected Lifetime: 2 years
• Operational Temperature Range: 0° to 50°C
• Storage Temperature Range: -0° to 45°C
• Humidity Range: Up to 100% Rh
• Ambient Pressure Range: 600-1750 hPa
• Electrical Interface: 2x slip-rings on PCB
