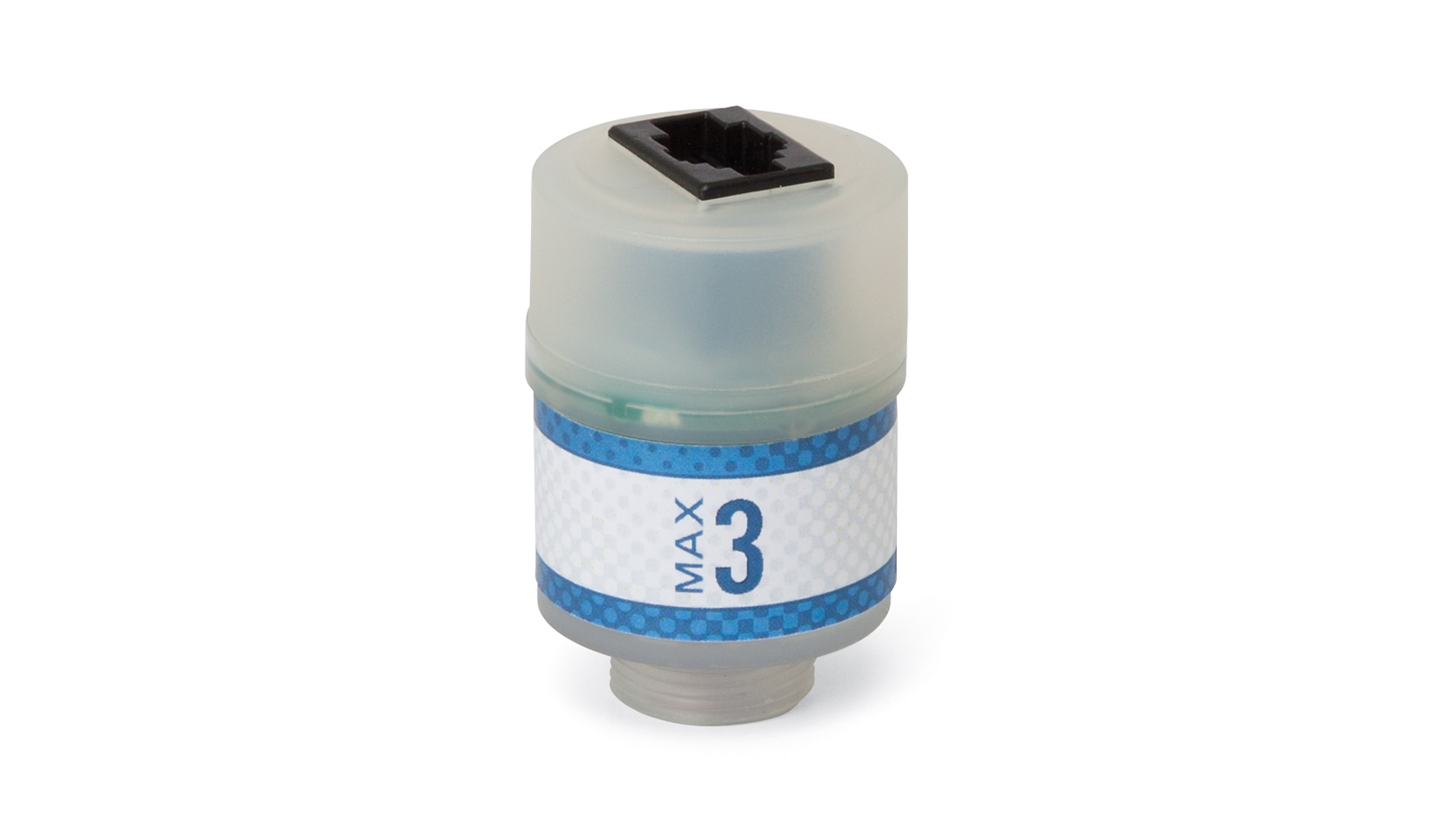

Max-3 Oxygen Sensor

Replacement For

• City Technology [MOX-3]
• Mindray [VT50 Ventilator]
• Paragon [Platinum SC430]
• Penlon [Prima SP2]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 9 to 13 mV
• Zero Offset: ≤ 100 uV
• Response Time: ≤ 15 s
• Linearity: ≤ 2%
• Expected Lifetime: >500,000 %O2 hours
• Operational Temperature Range: 0˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: up to 100% RH, condensing
• Ambient Pressure Range: 750-1250 mbar
• Interference: according DIN EN ISO 21647 and ISO 7767
• Electrical Interface: RJ11 modular plug
