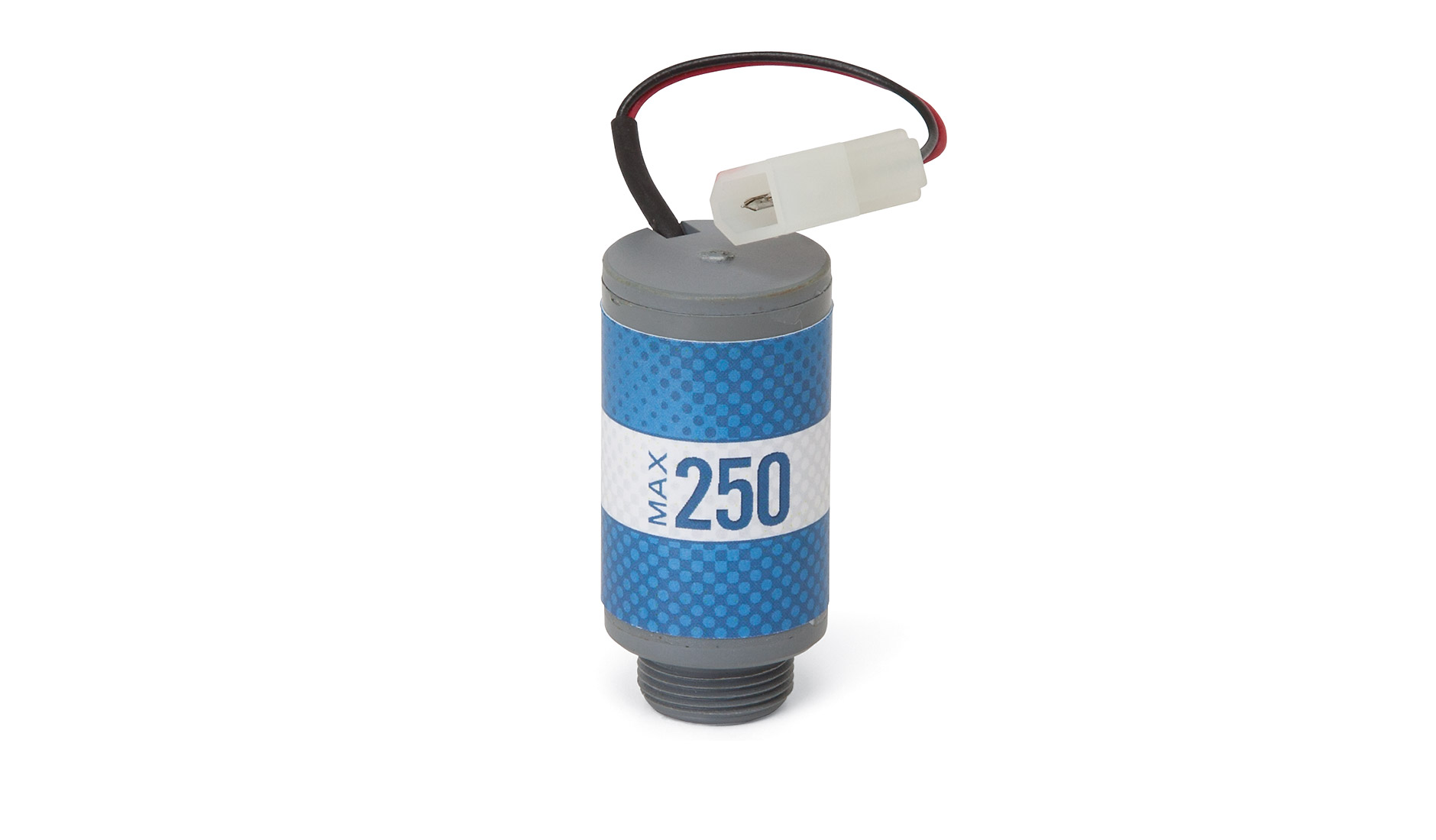

Max-250 Oxygen Sensor

Replacement For

• Fluke [VT Mobile]
• Maxtec [OM-25A]
• Mercury Medical [10-103-11]
• Pacifitech [PT-250]
• Teledyne [R29]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 10.0 to 15.5 mV
• Zero Offset: ≤ 0.50 mV
• Response Time: ≤ 15 s
• Linearity: ± 1.0%
• Expected Lifetime: > 1,500,000 %O2 hours
• Temperature Compensation: < ± 3.0%
• Operational Temperature Range: 5˚ to 40˚C
• Storage Temperature Range: -15˚ to 50˚C
• Humidity Range: 5% to 95% RH non-condensing
• Interference: Per EN ISO 80601-2-55
