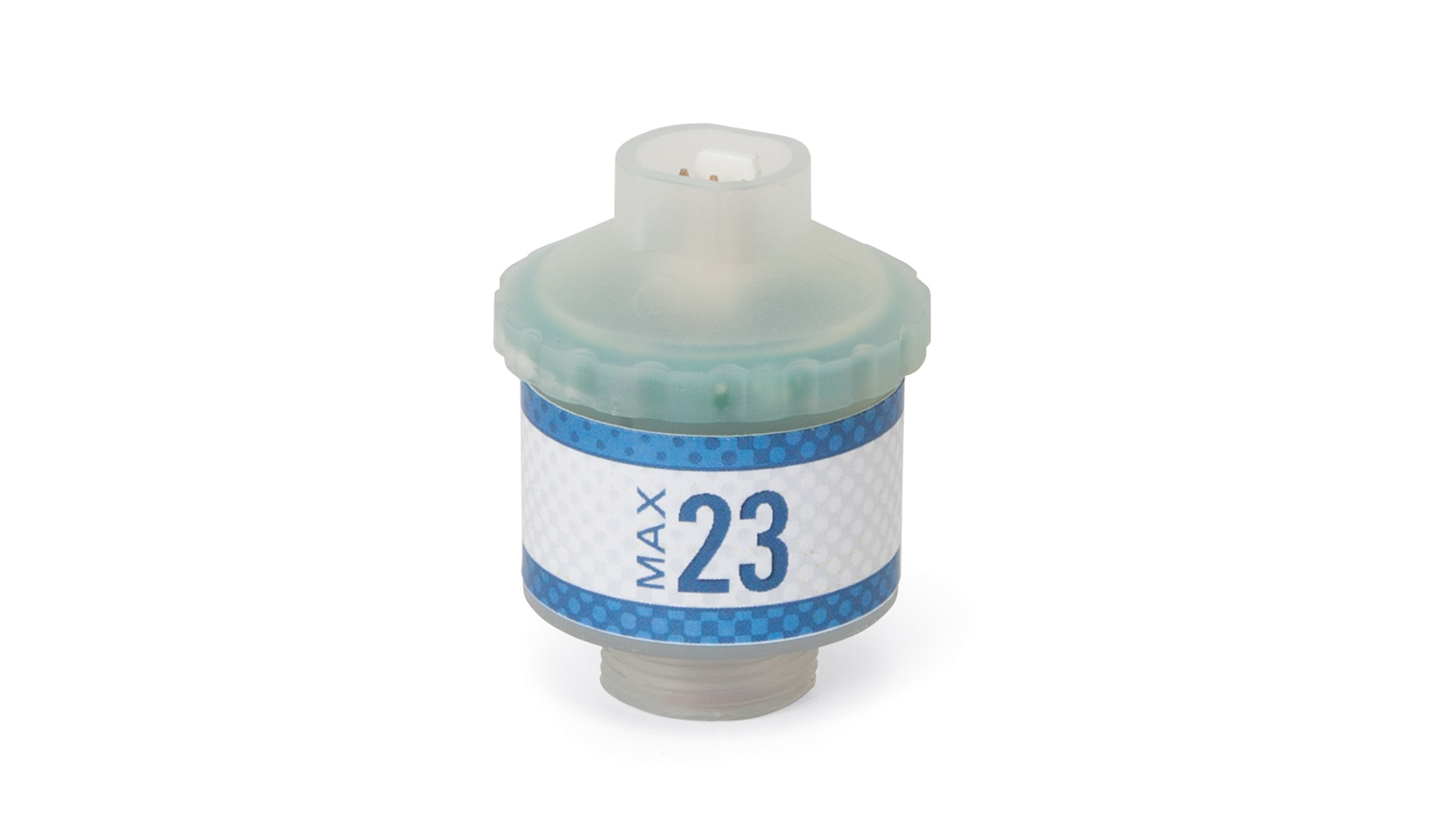

Max-23 Oxygen Sensor

Replacement For

• City Technology [MOX-1]
• EnviteC [OOM-102]
• Teledyne [R22 #C-44611]
• Teleflex (Hudson) [5566]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 8.0 to 13.0 mV
• Zero Offset: ≤ 0.2 mV
• Response Time: 1.5 – 3.5 s
• Linearity: ≤ 3%
• Expected Lifetime: 500,000 %O2 hours
• Operational Temperature Range: 25° to 45°C
• Storage Temperature Range: -20° to 50°C
• Humidity Range: < 100% RH (non-condensing)
• Ambient Pressure Range: 750-1250 mbar
• Interference: Conforms to DIN EN ISO 80601-2-55
• Electrical Interface: 2-pin Molex
