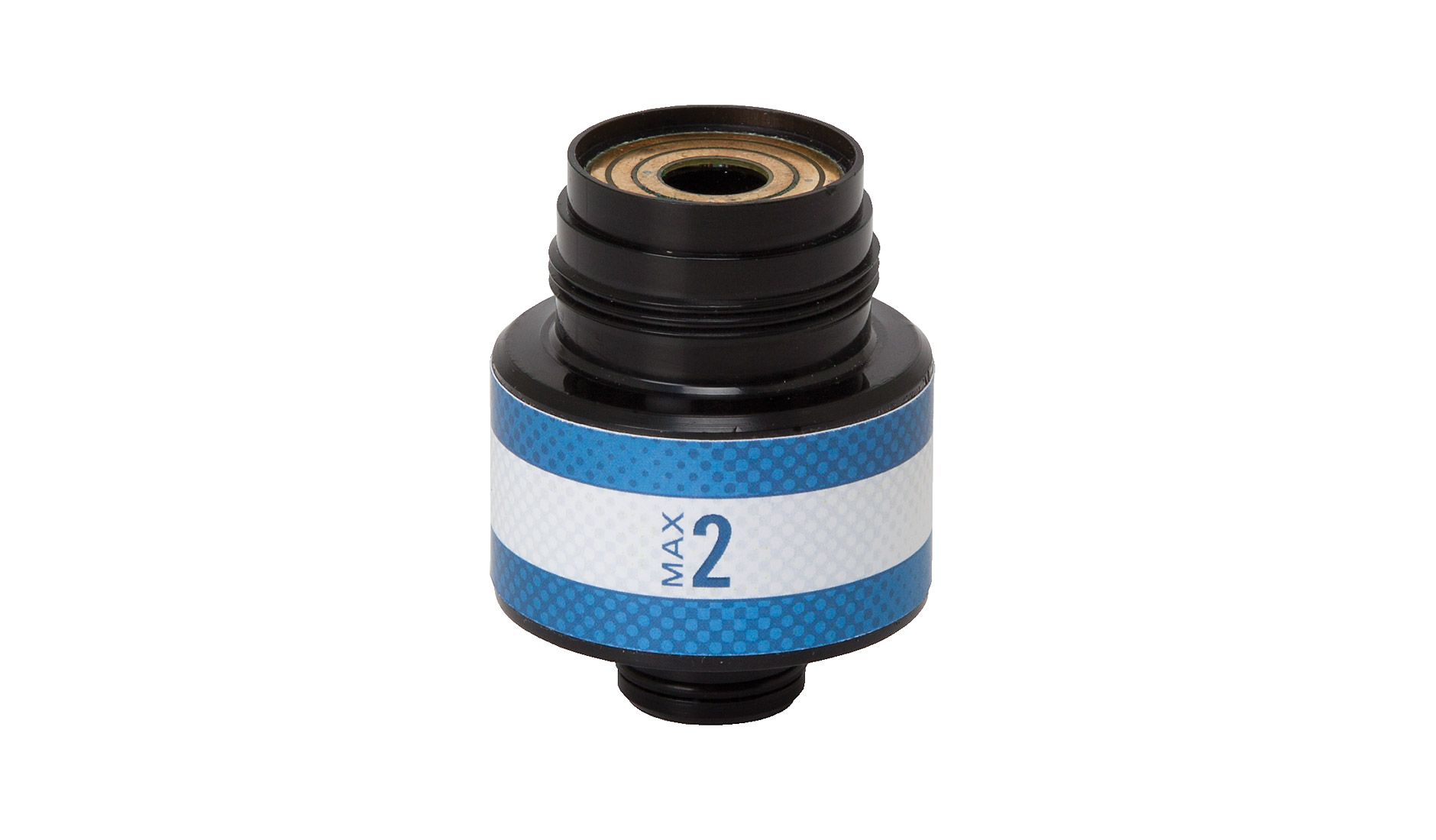

Max-2 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-915-1]
• Drager [6803290, 6850645, Narkomed, Fabius GS, Tiro]
• Hewlett Packard [15201A]
• Invivo [Magnitude]
• Mercury Medical [10-103-12]
• Pacifitech [PT-24]
• Teledyne [R31]
• VTI [101372, 101372]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 12.2 to 18.1 mV
• Zero Offset: ≤ 0.50 mV
• Response Time: ≤ 15 seconds at 23±2°C
• Linearity: ± 1.0%
• Expected Lifetime: > 2,000,000 %O2 hours
• Operational Temperature Range: 5° to 40°C
• Storage Temperature Range: -15° to 50°C
• Humidity Range: 5% to 95% RH, non-condensing
• Interference: Per EN ISO 80601-2-55
