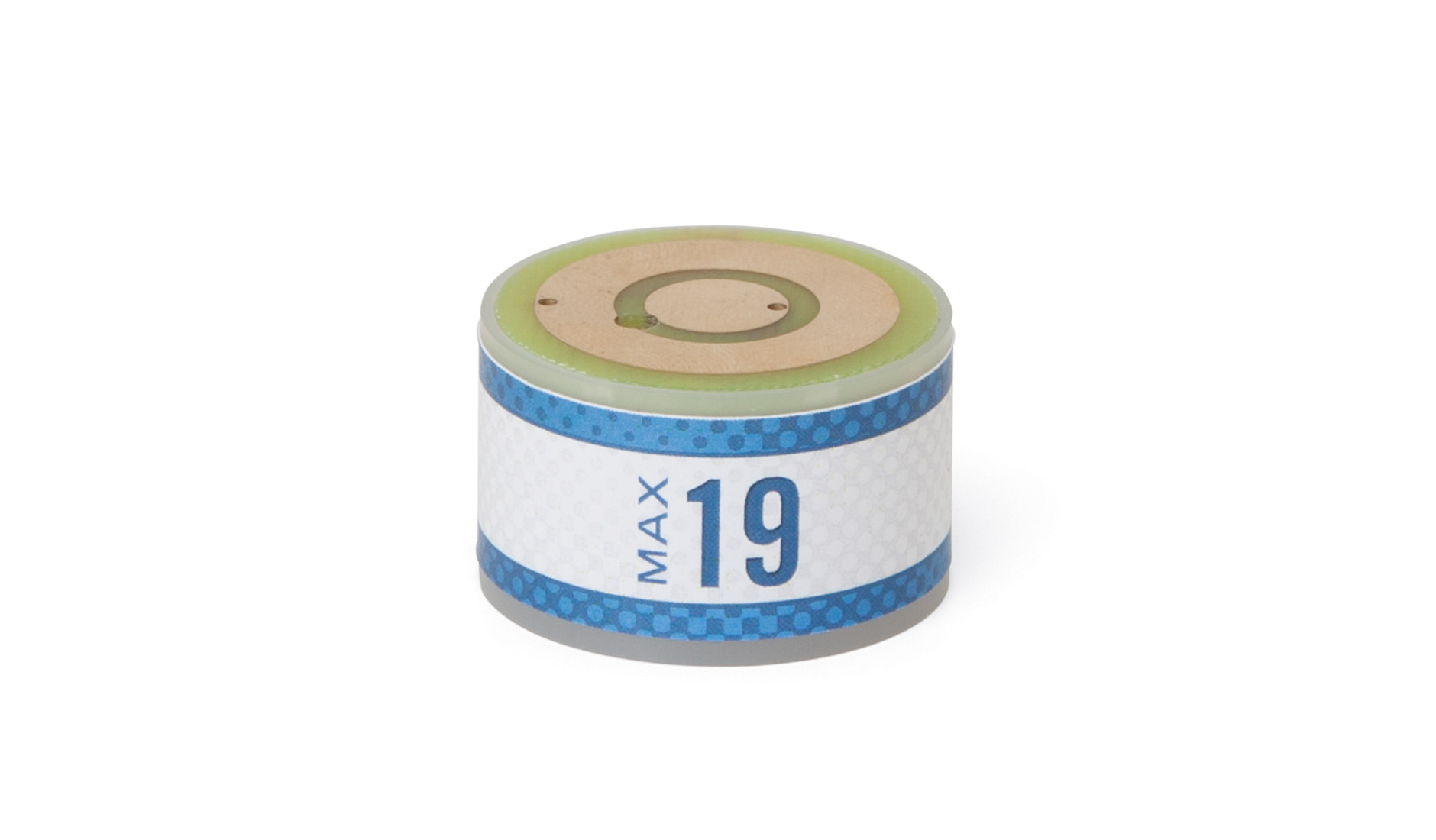

Max-19 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-33-1]
• Hamilton [HM-01, Veolar, Amadeus, Arabella]
• Mercury Medical [10-103-00]
• Pacifitech [PT-01]
• Teledyne [T1 #A-37016]
• Teleflex (Hudson) [5565, 5568, C1, C-01]

Specifications

• Range of Measurement: 0 to 100%
• Output Range: 170 to 230 µA
• Zero Offset: < 5 µA
• Response Time: < 20 s
• Linearity: ≤ 3%
• Expected Lifetime: > 250,000 %O2 hours
• Operational Temperature Range: 10° to 40°C
• Storage Temperature Range: -20° to 50°C
• Humidity Range: 0% to 99% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: gold-plated slip rings
