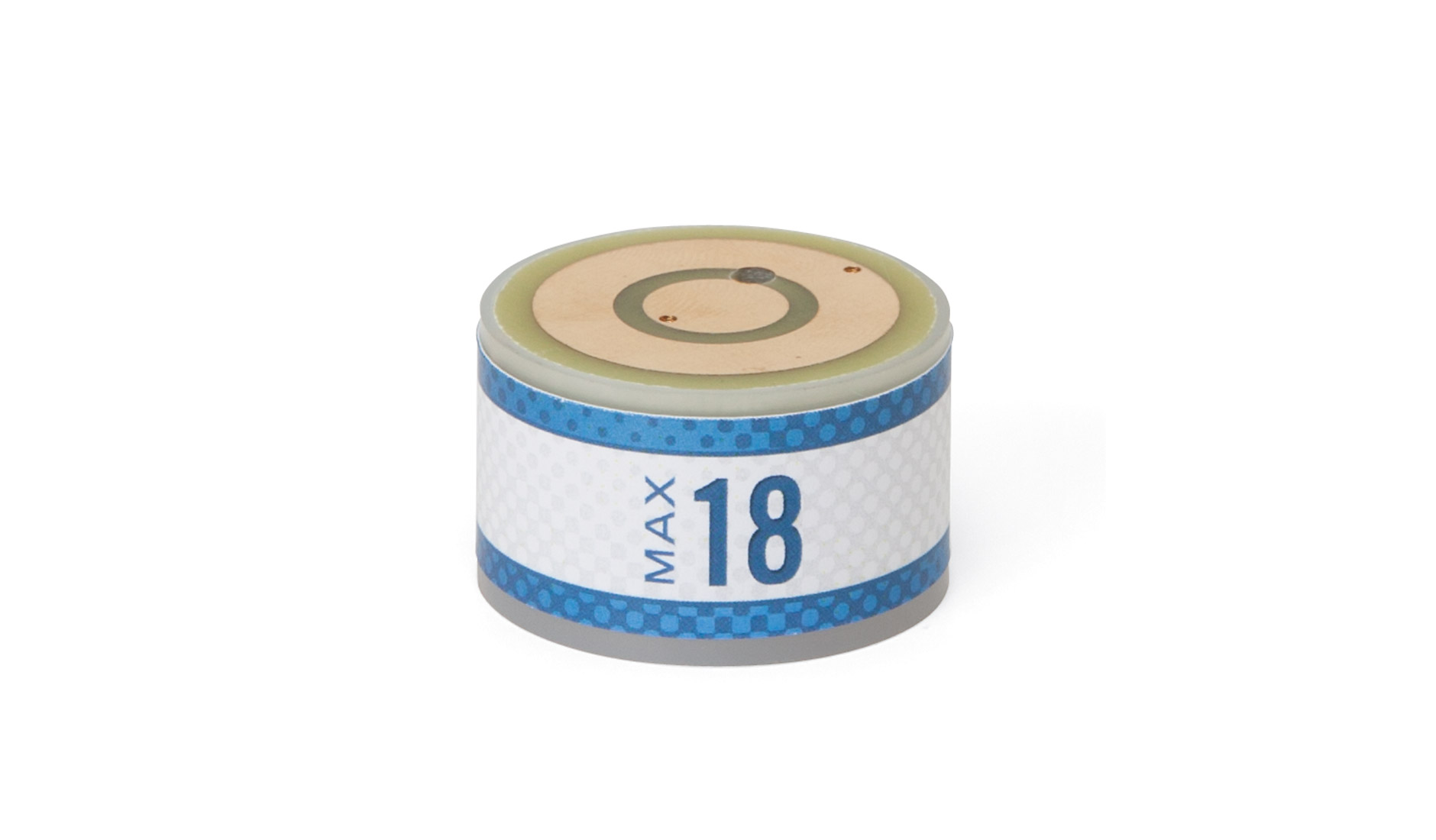

Max-18 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-33-1]
• Mercury Medical [10-103-01]
• Pacifitech [PT-02]
• Teledyne [C1R #B-39022]
• Teleflex (Hudson) [5569, V-02, 5525, 5528, 5529, 5550, 5552]

Specifications

• Range of Measurement: 0 to 100% O2
• Output (in air): 200 ± 40 µA
• Zero Offset: Less than 5 µA
• Response Time: ≤ 13 seconds at 30° C
• Linearity: < 3%
• Expected Lifetime: > 250,000 %O2 hours
• Operational Temperature Range: 0° to 40° C
• Storage Temperature Range: -20° to 50° C
• Humidity Range: Up to 100% RH
• Ambient Pressure Range: 600 – 1750 mBar
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 1mm x 3.5mm Pins
