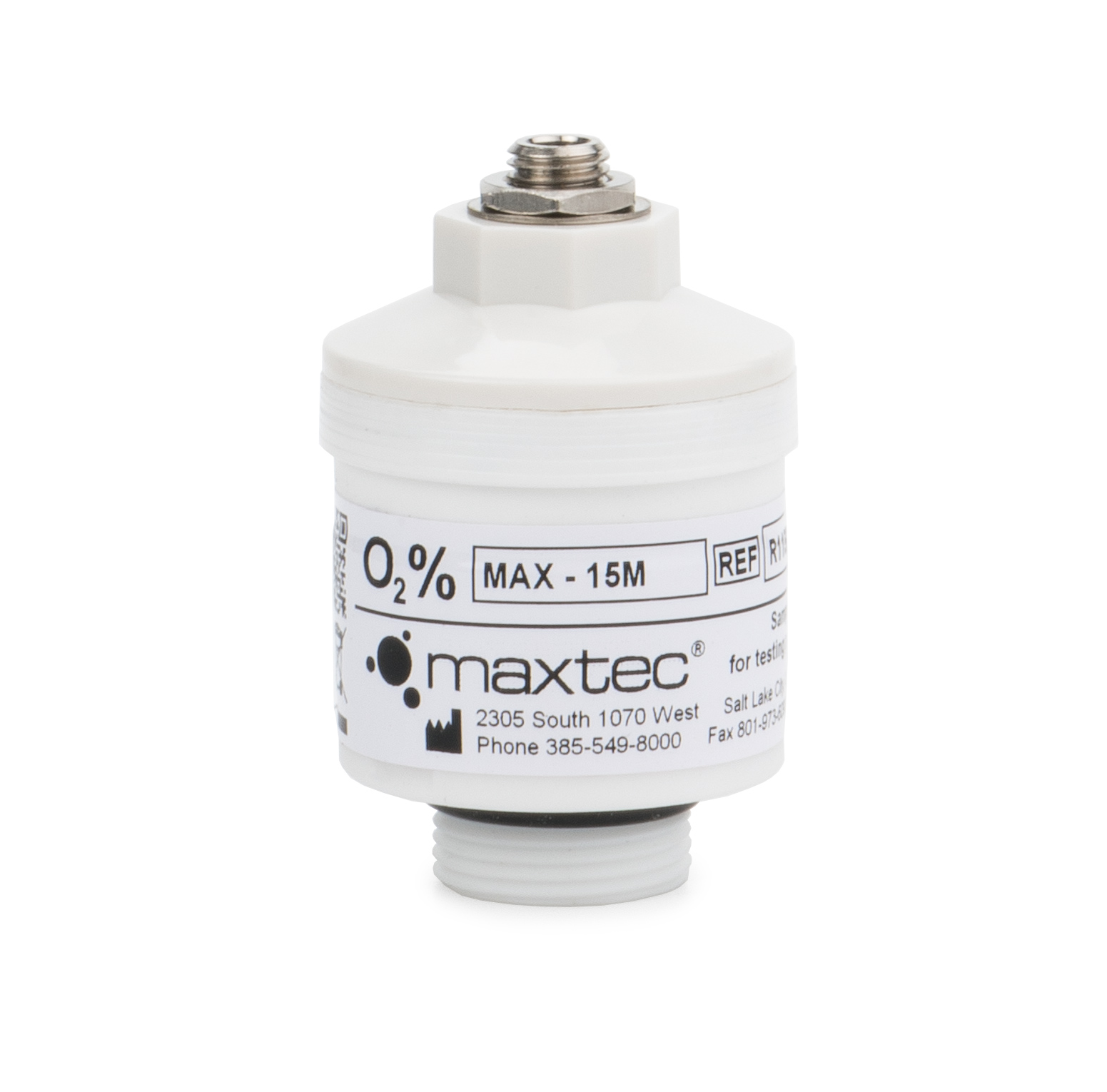

Max-15M Oxygen Sensor

Replacement For

• City Technology [MOX-2]
• Mindray [A3, A5]

Specifications

• Range of Measurement: 0 to 100%
• Output Range: 5 to 15 mV
• Zero Offset: ≤ 0.30 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 750,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 0˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: 0% to 98% RH, non-condensing
• Ambient Pressure Range: 600-1750 mbar
• Interference: per EN ISO 80601-2-55
• Electrical Interface: 3.5 mm mono jack
