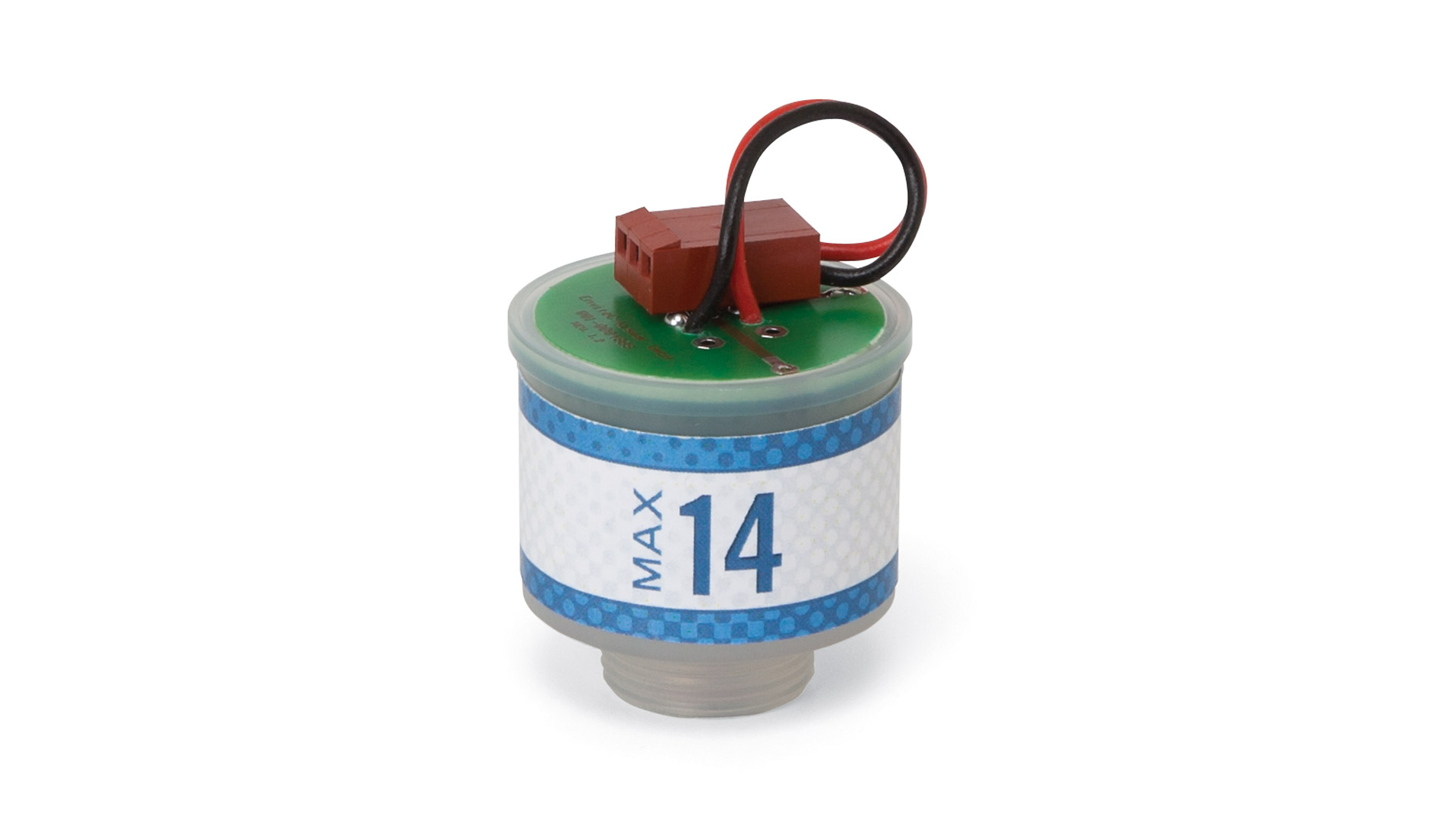

Max-14 Oxygen Sensor

Replacement For

• Devilbiss [02ANA-101 Sensor]
• MSA [806572, MiniOX 1A]
• Mercury Medical [10-103-13]
• Pacifitech [PT-26]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 9.0 to 13.0 mV
• Zero Offset: ≤ 0.20 mV
• Response Time: ≤ 12 s
• Linearity: < 3%
• Expected Lifetime: > 1,000,000 %O2 hours
• Operational Temperature Range: 0˚ to 50˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: up to 99% RH
• Ambient Pressure Range: 600-1750 mbar
• Interference: per EN ISO 80601-2-55
• Electrical Interface: 3-pin Molex
