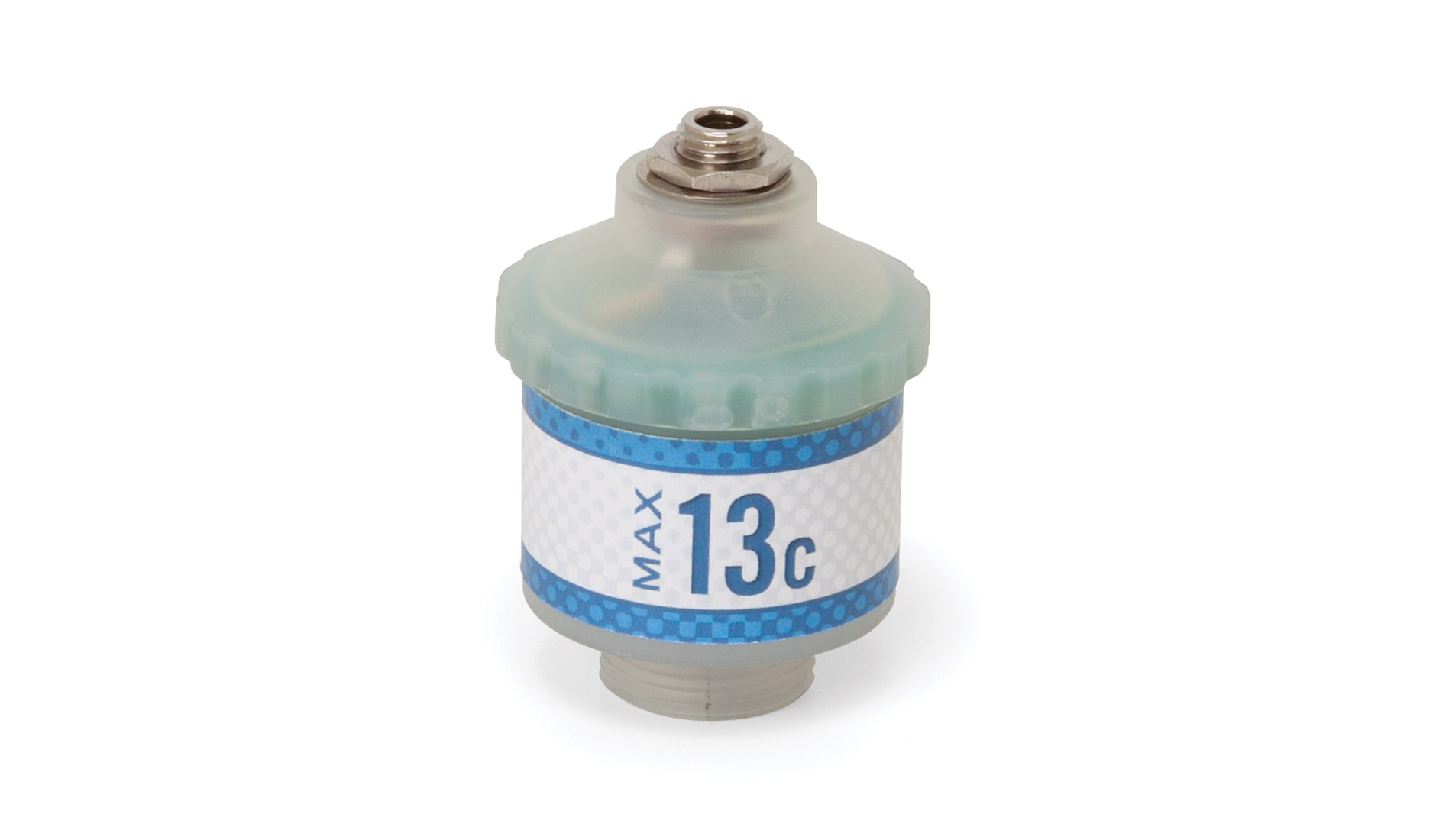

Max-13c Oxygen Sensor

Replacement For

• BioMed Devices [4433]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 8.0 to 12.0 mV
• Zero Offset: ≤ 0.20 mV
• Response Time: ≤ 13 s
• Linearity: < 3%
• Expected Lifetime: > 500,000 %O2 hours
• Operational Temperature Range: 0° to 40°C
• Storage Temperature Range: -20° to 60°C
• Humidity Range: up to 100% RH, condensing
• Ambient Pressure Range: 600-1750 mbar
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 2.5mm phone plug
