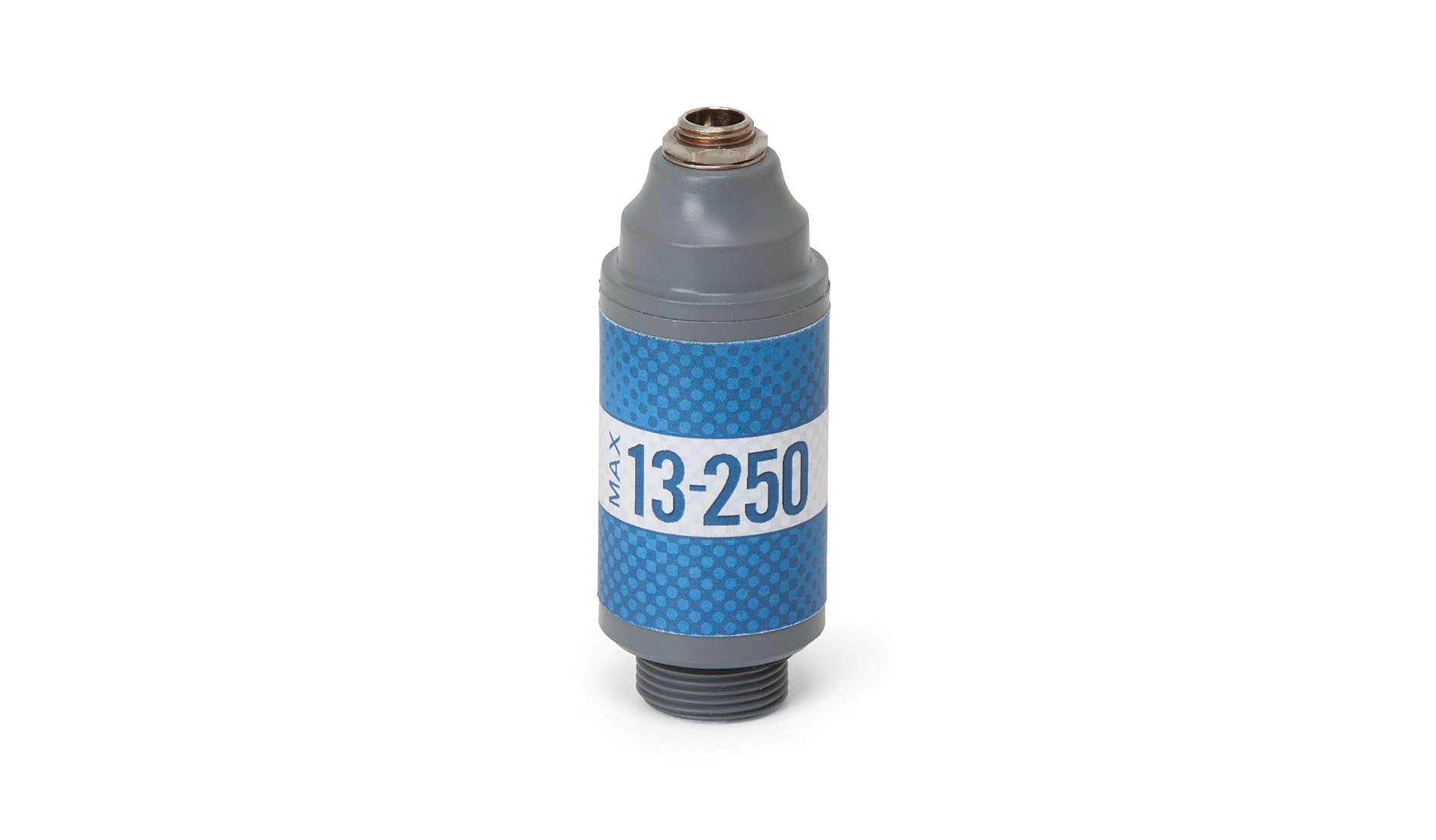

Max-13-250 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-917-J]
• Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
• Datascope [Anestar S]
• HillRom [6735142]
• Invivo [9445 Sensor]
• MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
• Mercury Medical [10-103-05]
• Pacifitech [PT-11A]
• Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
• Teledyne [R17 #C-43690]
• Teleflex (Hudson) [5567]
• VTI [100580]
• Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]

Specifications

• Range of Measurement: 0 to 100% oO2
• Output Range: 12.0 to 17.0 mV
• Zero Offset: ≤ 0.50 mV
• Response Time: ≤ 15 s
• Linearity: ± 1.0%
• Expected Lifetime: >1,500,000 %O2 hours
• Temperature Compensation: < ± 3.0%
• Operational Temperature Range: 5˚ to 40˚C
• Storage Temperature Range: -15˚C to 50˚C
• Humidity Range: 5% to 95% RH, non-condensing
• Interference: per EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack
