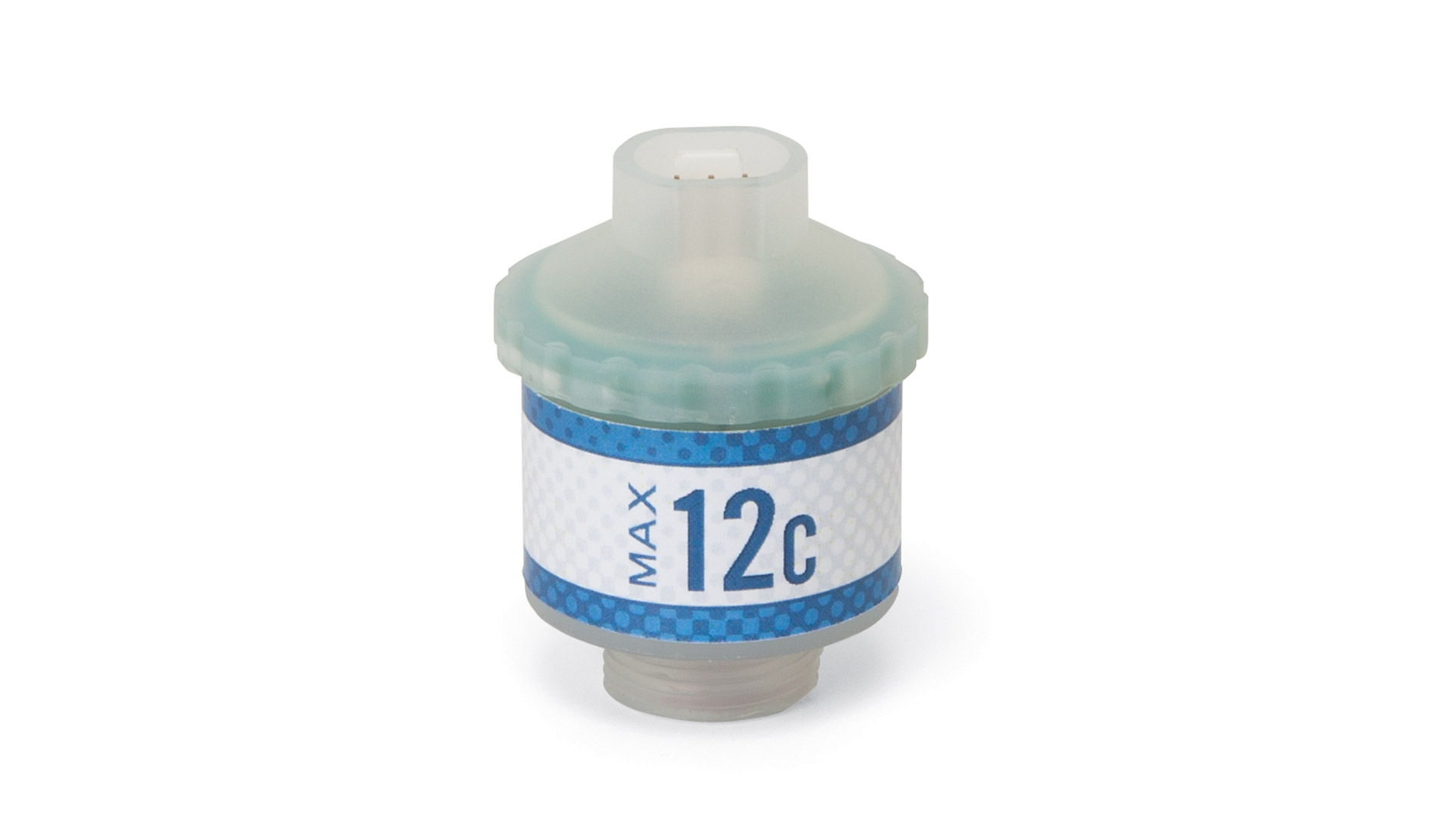

Max-12c Oxygen Sensor

Replacement For

• Viasys [Avea Ventilator, Infant SiPaP]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 8.0 to 13.0 mV
• Zero Offset: < 0.3 m
• Response Time: ≤ 12 s
• Linearity: < 3%
• Expected Lifetime: >1,000,000 %O2 hours
• Operational Temperature Range: 10˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: up to 100% RH, non-condensing
• Interference: according to DIN EN ISO 80601-2-55
• Electrical Interface: 3-pin Molex
