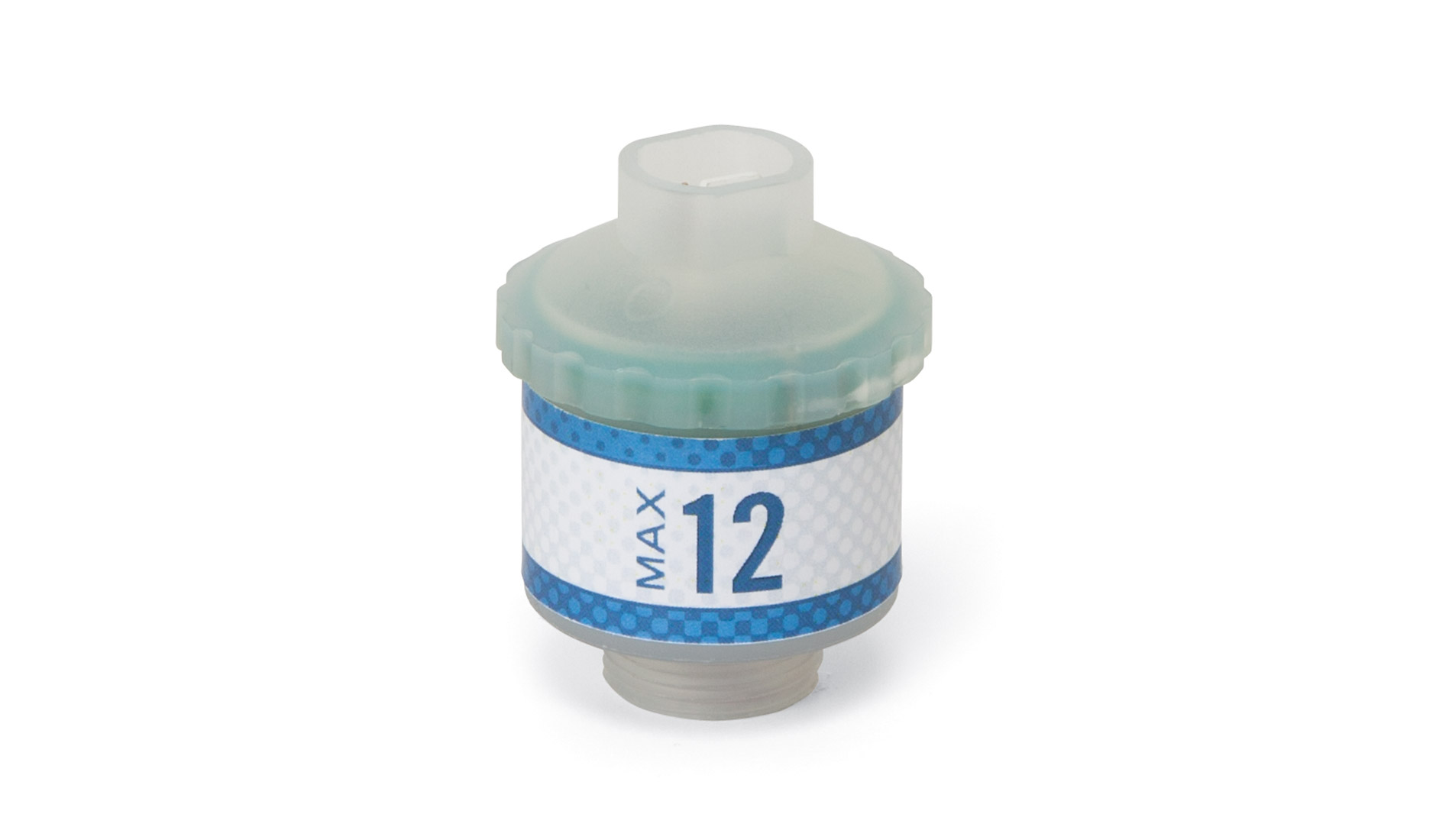

Max-12 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-917-M]
• City Technology [MOX-9]
• Datascope [0600-00-0002 (MAX-12f)]
• EnviteC [OOM-202]
• Hamilton [396008, 396009, Galileo, Raphael, Arabella, Aladdin, 51254, G5, Arabella]
• IMT [PF300]
• International Technologies [M-04]
• MSA [472062, 470644]
• Mercury Medical [10-103-06]
• Pacifitech [PT-12A]
• Sensidyne [Acutonic Hi Freqency Jet Ventilator, 00M102]
• Siemens [9004979-E347E]
• Spacelabs [90513, Capnograph]
• Taema [YR049700, Cesar-2, Horus-4]
• Teledyne [R24MED #B-62321]
• Teleflex (Hudson) [5556, V-12]
• VTI [103100]

Specifications

• Range of Measurement: 0 to 100%
• Output Range: 12.5 to 16.5 mV
• Zero Offset: ≤ 0.250 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 1,000,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 10˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: 0% to 90% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: 3-pin Molex
