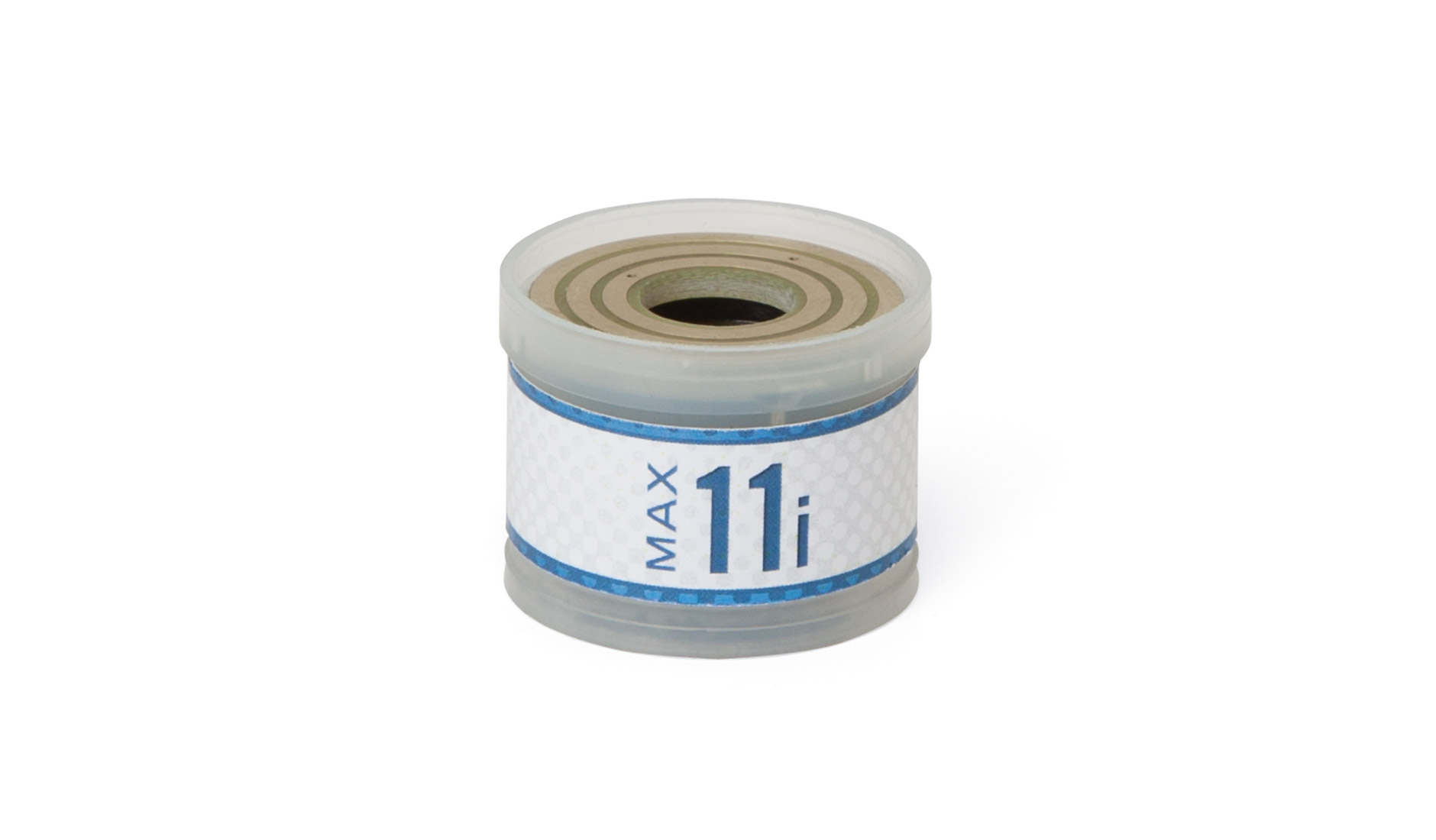

Max-11i Oxygen Sensor

Replacement For

• Drager [Incubators, 18000 High Temp App.]

Specifications

• Range of Measurement: 0 to 100%
• Output Range: 14 to 20 mV
• Zero Offset: ≤ 0.300 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 750,000 %O2 hours
• Temperature Compensation: none
• Operational Temperature Range: 10° to 40°C
• Storage Temperature Range: -20° to 50°C
• Humidity Range: 0% to 99% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: gold-plated slip ring
