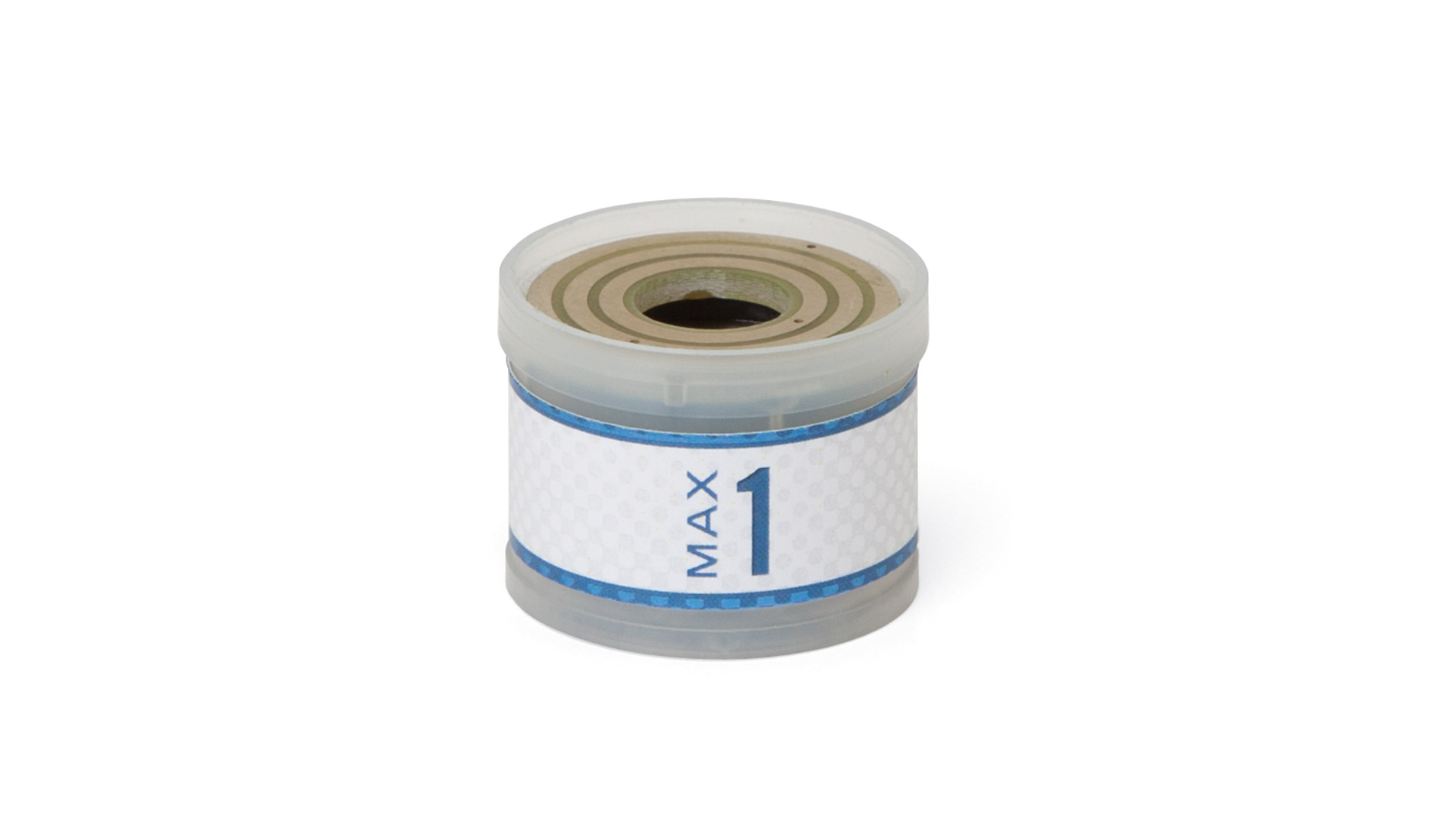

Max-1 Oxygen Sensor

Replacement For

• Analytical Industries [PSR-11-915]
• Datascope [Multinex Analyzer]
• GE (Datex-Ohmeda) [0237-2034-700 Excel Modulus,5250 RGM,5150 Handheld Monitor]
• GE (Ohmeda) [5120, 5100, 5250 RGM, 4700 Oxicap, 7800, 5125, 5150, Handheld Monitor, 0237-2034-700, Excel Modulus]
• Hewlett Packard [15201A]
• Mercury Medical [10-103-07]
• Pacifitech [PT-10]
• Teledyne [R15 #C-41131]
• Teleflex (Hudson) [5556]
• VTI [100352, 101272, 100352]

Specifications

• Range of Measurement: 0 to 100%
• Output Range: 14 to 20 mV
• Zero Offset: ≤ 0.30 mV
• Response Time: ≤ 17 seconds
• Linearity: ≤ 3% full scale
• Expected Lifetime: > 500,000 %O2 hours
• Temperature Compensation: none
• Operational Temperature Range: 10˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: 0% to 90% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: per EN ISO 80601-2-55
• Electrical Interface: gold plated slip rings
