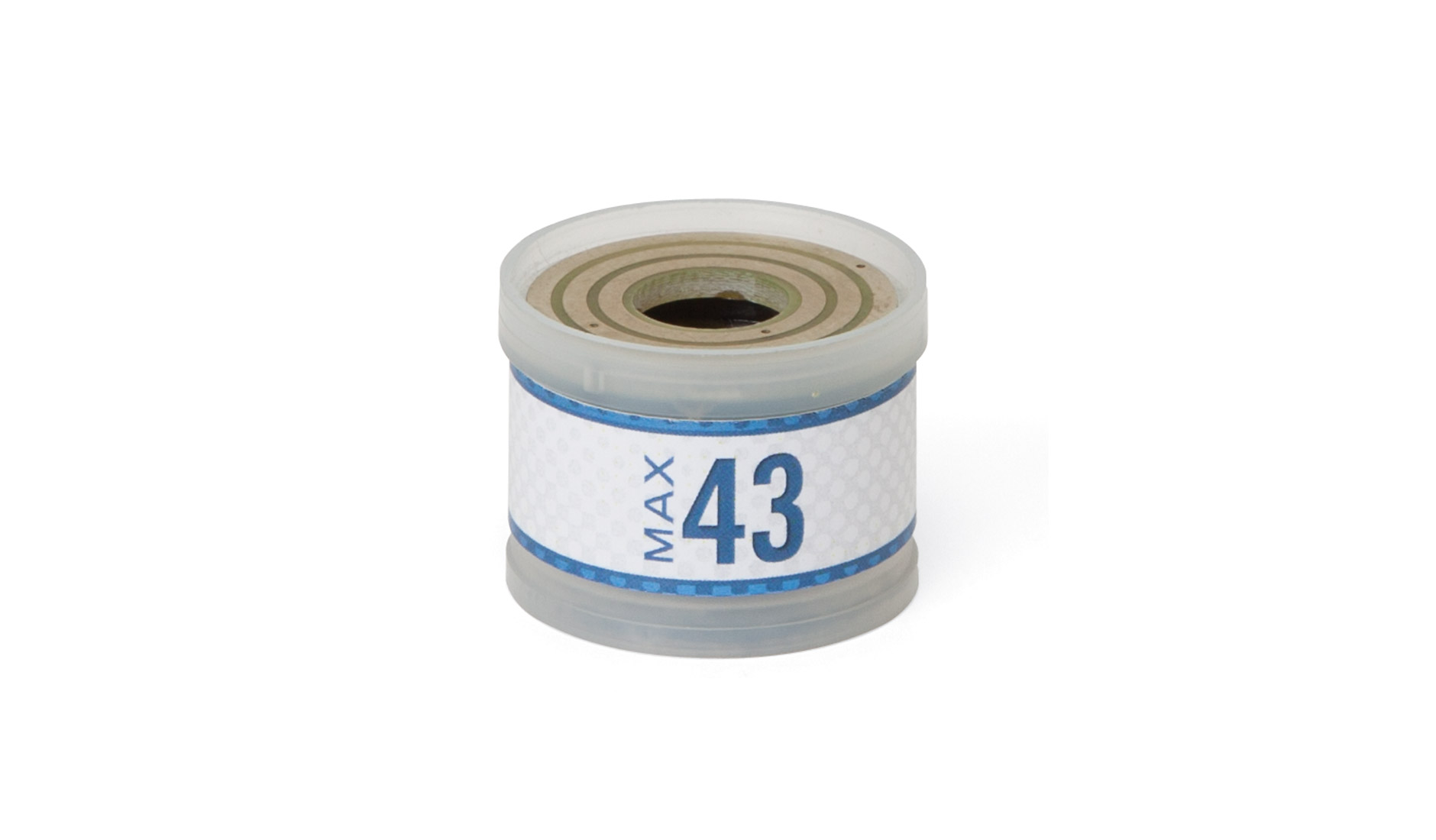

Max-43 Oxygen Sensor

Replacement For

• GE (Ohmeda) [Giraffe]

Specifications

• Range of Measurement: 0 to 100% O2
• Output Range: 25 to 35 mV
• Zero Offset: ≤ 0.20 mV
• Response Time: ≤ 17 s
• Linearity: ≤ 3% at 100% O2
• Expected Lifetime: > 500,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 10˚C to 40˚C
• Storage Temperature Range: -20˚C to 50˚C
• Humidity Range: up to 100% RH
• Interference: per DIN EN ISO 21647 and ISO 7767
• Electrical Interface: 2 gold-plated slip rings
